COB LED با قدرت بالا

Bulk Meanwell Single Output LED Power Supply Waterproof LED Driver

تمام دسته ها

چراغ روشنایی خیابانی مجتمع کیت

Bulk Meanwell Single Output LED Power Supply Waterproof LED Driver

نام تجاری:	Sunshineopto
شماره مدل:	LPV-100-12
مقدار تولیدی:	10
قیمت:	Negotiate
جزئیات بسته بندی:	کارتن
شرایط پرداخت:	T/T ، Western Union ، MoneyGram ، PayPal

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

شنژن

گواهی:

SGS CE RoHS

توان خروجی:

۱۰۲ وات

ولتاژ خروجی:

12 ولت

جریان خروجی:

8.5a

کارایی:

85%

تایپ کنید:

ضد آب

گارانتی:

2 سال

مواد:

آلومینیوم

انتقال انرژی:

AC-DC

قابلیت ارائه:

5000تکه/هفته

برجسته کردن:

Meanwell waterproof LED driver,single output LED power supply,high power COB LED driver

single output LED power supply

high power COB LED driver

توضیحات محصول

Bulk Meanwell Single Output LED Power Supply Waterproof LED Driver

Product description:

item	value
Place of Origin	China
Warranty(Year)	2-Year
Model Number	LPV-100-12
Brand Name	MEANWELL
Application	Outdoor Lighting
Material	Aluminum
Dimming	Phase-Cut
Dimming Mode	Pwm, Leading edge, ELV, MLEV
Efficiency	85%
Energy Transfer	AC-DC
Input Voltage	90 ~ 264VAC/127 ~ 370VDC
Lighting solutions service	Lighting And Circuitry Design
Output Current	8.5A
Output Frequency	47~63HZ
Output Power	102W
Output Type	Single
Product Weight(kg)	0.63
Topology	AC-DC Converter
Type	waterproof

Bulk Meanwell Single Output LED Power Supply Waterproof LED Driver 0

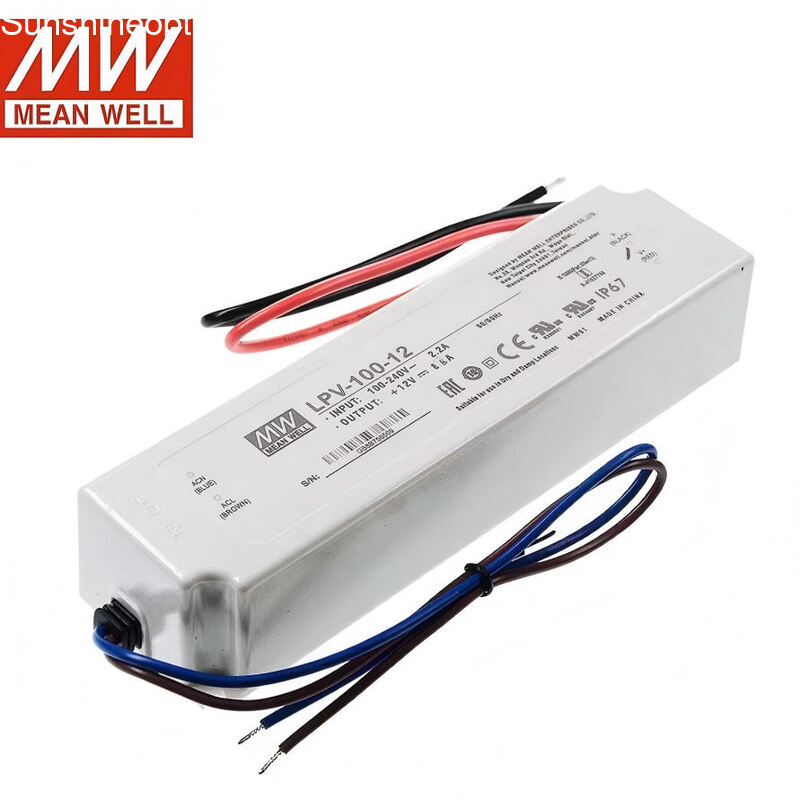

Detailed photos:

Features:

.Constant voItage design
.universaI AC input / FuII range
.FuIIy encapsuIated with IP67 IeveI (Note.7)
.Withstand 300VAC surge input for 5 seconds
.Protections: short circuit / overIoad / over voItage
.FuIIy isoIated pIastic case
.CooIing by free air convection
.100% fu II Ioad burn-in test
.Low cost, high re IiabiIity
.suitabIe for LED reIated fixture or appIiance
(such as LED Decoration or Advertisement devices)
.2 years warranty

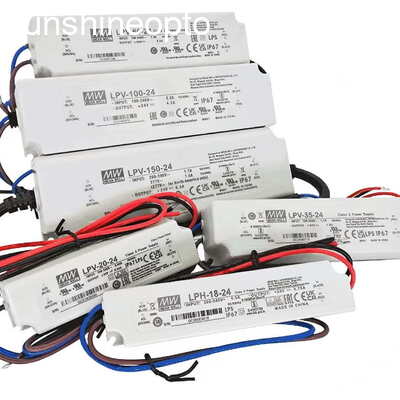

Related products:

MODEL		LPV-100-5	LPV-100-12	LPV-100-15	LPV-100-24	LPV-100-36	LPV-100-48
	DC VOLTAGE	5V	12V	15V	24V	36V	48V
	RATED CURRENT	12A	8.5A	6.7A	4.2A	2.8A	2. 1A
	CURRENT RANGE	0 ~ 12A	0 ~ 8.5A	0 ~ 6.7A	0 ~ 4 .2A	0 ~ 2 .8A	0 ~ 2. 1A
	RATED POWER	60W	102W	100.5W	100.8W	100.8W	100.8W
OUTPUT	RIPPLE & NOISE (max.) Note.2	80mVp-p	120mVp-p	120mVp-p	150mVp-p	150mVp-p	150mVp-p
	VOLTAGE TOLERANCE Note.3	±8 .0%	±5 .0%
	LINE REGULATION	±1 .0%
	LOAD REGULATION	±6 .0%	±2 .0%
	SETUP, RISE TIME Note.6	2000ms , 25ms / 230VAC 2000ms , 25ms / 115VAC
	HOLD UP TIME (Typ.)	50ms/230VAC 14ms/115VAC at full load
	VOLTAGE RANGE Note.4	90 ~ 264VAC 127 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
INPUT	EFFICIENCY (Typ.)	80%	85%	87%	88%	88%	89%
	AC CURRENT	2.2A/115VAC 1.2A/230VAC
	INRUSH CURRENT(Typ.)	COLD START 75A(twidth=700μs measured at 50% Ipeak) at 230VAC
	MAX. No. of PSUs on 16A CIRCUIT BREAKER	2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
	LEAKAGE CURRENT	0.25mA / 240VAC

Product Application:

Company profile:

Shenzhen Sunshine Opto-Electronics Technology Ltd.
Sunshineopto are experts in integrated solutions for core LED lighting components. We integrate custom optical lenses, high-performance LED boards, and branded driver power supplies (Meanwell) to provide lighting manufacturers and brands with complete core modules from design to delivery, helping customers shorten R&D cycles and improve product performance and reliability.OEM ,ODM is acceptable .Fast production and professional service is our best advantage .
Our factory can make out the aluminium PCB and solder LEDs and wires according to customer's design and requirement.

Bulk Meanwell Single Output LED Power Supply Waterproof LED Driver 4

Packing&Shipping:

DHL/UPS/TNT/FEDEX	4-5 working days
EMS	10-15 working days
HK Post Air Mail Register	15-18 working days
Trade Terms	FOB \| EXW \| CIF \| CNF
Sample Availability	YES
Standard Delivery Time	3-4 working days

Bulk Meanwell Single Output LED Power Supply Waterproof LED Driver 5
